DIELECTRIC
介質
|
Polyester film
聚脂薄膜
|
|
ELECTRODES
電極
|
Vacuun evaporated metal
真空蒸鍍金屬
|
|
COATING
包封
|
Out wrapped with Mylar tape and ends sealed with epoxy resin
瑪拉膠帶包封，環氧樹脂封裝
|
|

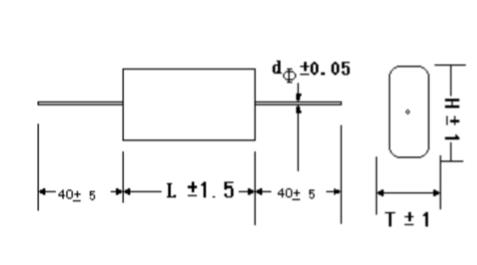

LEADS
導線
|
Axial leads of tinned wire
軸向鍍錫導線
|
|
REFERENCE STANDARD
引用標準
|
IEC 384-2 grade 1；SJ/T 10873-1996
|
|
CLIMATIC CATALOGUE
氣候類別
|
40/85/21 (From 85℃ up to 105℃ with derating voltage 1.25%/℃)
（85℃至105℃間按1.25%/℃遞減電壓）
|
|
APACITANCE VERSUS
RATED VOLTAGE(UR)
靜電容量與額定誤差
|
0.01μF-25μF/ 100VDC 0.01μF-18μF/250VDC
0.01uF-6.8uF/400VDC 0.01uF-6.8uF/630VDC
|
|
CAPACITANCE TOLERANCE
靜電容量誤差
|
M=±20% K=±10% J=±5%
|
|
DISSIPATION FACTOR
（TANGENT OF LOSS）
散逸因素（損耗角正切）
|
C≤1.0μF DF≤0.8%
C＞1.0μF DF≤1.0% (at 20℃,1KHz)
|
|
VOLTAGE PROOF
耐電壓
|
1.6*UR Unit:VDC (5s at 20℃)
|
|
INSULATION RESISTANCE
絕緣電阻
|
C≤0.33μF, IR≥15000MΩ;
C＞0.33μF, IR*C≥3000S (1minute at 20℃ and RH≤65%)
|
|
ENDURANCE
耐久性
|
1000 hours with 125% of rated voltage at 85℃,After the Test:
85℃試驗溫度下，125%之額定電壓1000小時,
△C/C≤8%；△DF≤0.30%（C＞1μF）；
△DF≤0.50%（C≤1μF）;
IR≥0.5% of the specified value （標稱值）. （20℃ 1KHz）
|
