FEATURE

特點：

Small size with supperior performance

·小體積、性能佳

Suitable for PCB mounting

可安裝于PCB

Ideal for AC or DC application

適用于交/直流

Large product selection range with 1/4,1/2 and 1 watt resistors,0.001uF to 1.0uFcapacitors

多種電阻功率1/4,1/2和1瓦特，電容0.001Uf至1.0uF 供選擇

Providing flexible wire, tubular and box type on request

可選軟引線式、管狀或盒子結構

APPLICATION

用途：

Protection for contacts from noise during switching operations of equipment

設備切換時，保護觸點，消除火花及噪音

Protection of electronic instruments during operation of relays, solenoids,motors and so on

按觸器，繼電器，電機等操作時保護電子設備

Electrical noise protection of semiconductor equipment during the control of triacs,transistor motors,welders,etc,

消除晶閘管，電晶體，電機，焊接機等半導體設備之電諧干擾

 DIELECTRIC

介質

Metallized polypropylene film

金屬化聚丙烯薄膜

  RESISTOR

電阻

Non-inductive,high pulse resistor

無感型，耐脈沖電阻

LEADS

導線

Tinned wire or polyvinylchloride(PVC)insulation stranded copper wire

徑向鍍錫導線或絕緣導線

COATING

灌封

Expoxy resin(UL94V-0)

環氧樹脂（阻燃等級UL94V-0）

  CATEGORY

類別

X2 class

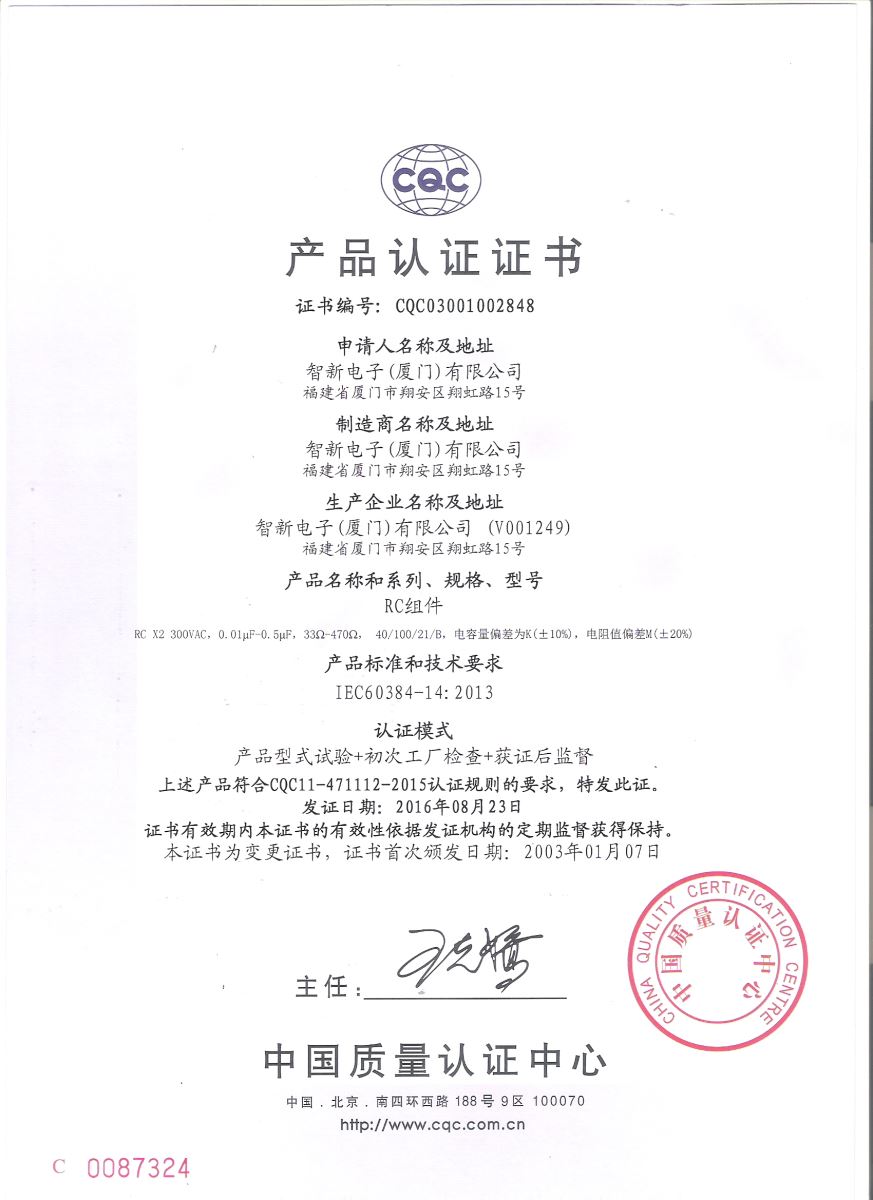

REFERENCE STANDARD

引用標準

 IEC384-14  GB/T14472-98 ；EN132400；UL1283

 CLIMATIC CATALOGUE

氣候類別

40/100/21

 CAPACITANCE VERSUS

  RATED VOLTAGE(UR)

   靜電容量與額定電壓

 串聯（SERIES）0.01μF~1.0μF   300VAC

 并聯（PARALLEL）0.001μF~0.68μF   3000VAC

     RESISTANCE AND POWER

電阻功率及阻值

  串聯（SERIES）10~470Ω，1/4、1/2、1.0 or 2.0 Watt

  并聯（PARALLEL）1.0~2.2 MΩ，1/4、1/2、1Watt

 VOLTAGE PROOF

耐電壓

4.3*UR   Unit:VDC   ( 1 minute at 20℃)

    INSULATION RESISTANCE

 絕緣電阻

C≤0.33µF IR≥15,000MΩ; C>0.33µF ,IR*C≥5,000S----僅指串聯類型（Series only)

（1minute at 20℃ and RH≤65%）

   CAPACITANCE TOLERANCE

 容量誤差

M=±20%  K=±10%  J=±5%

  ENDURANCE

 耐久性

The test voltage 125% shall be applied for 1000 hours in the 85℃ chamber.  Each of these voltage shall be applied to each capacitor individually through a resistor of 47Ω±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test：

85℃試驗溫度下，125%UR交流電壓1000小時，試驗過程中，每個電容器串聯一個47Ω電阻。1000V交流電壓 （60HZ），每一小時施加0.1S驗完成后:

△C/C≤10%; IR ≥50% of the specified value(標稱值);

△DF≤0.8%(C≤1µF);  △DF≤0.5%(C＞1µF); (at 20℃ 1KHz)
